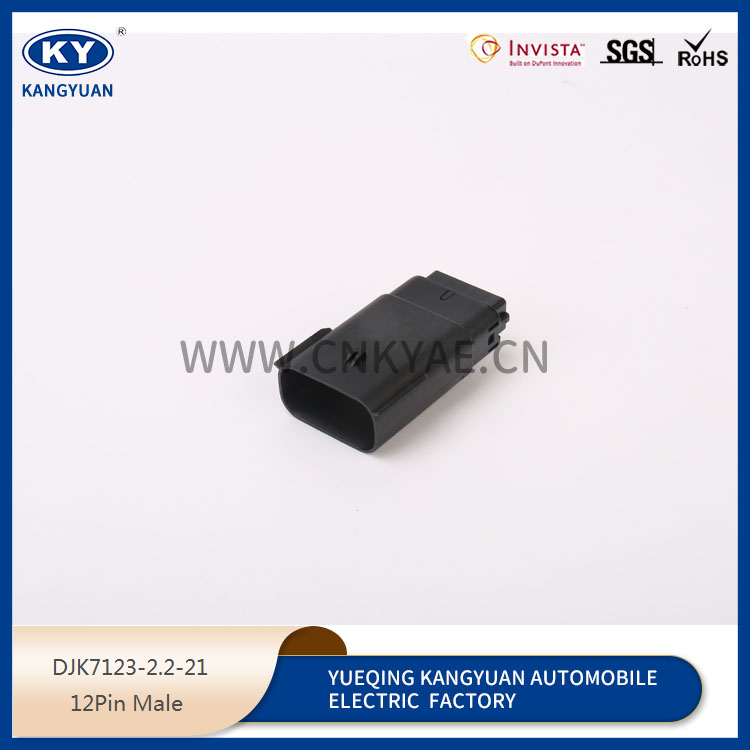

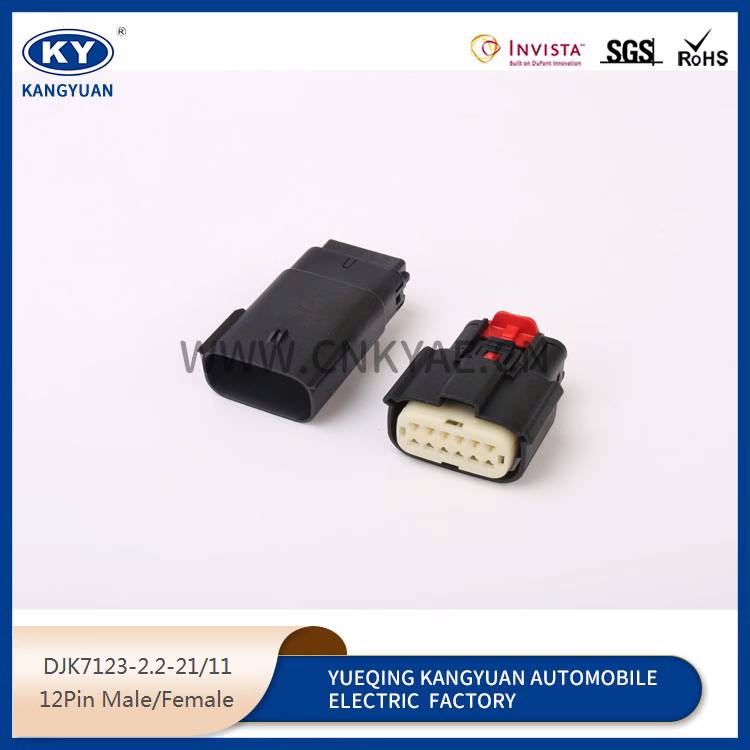

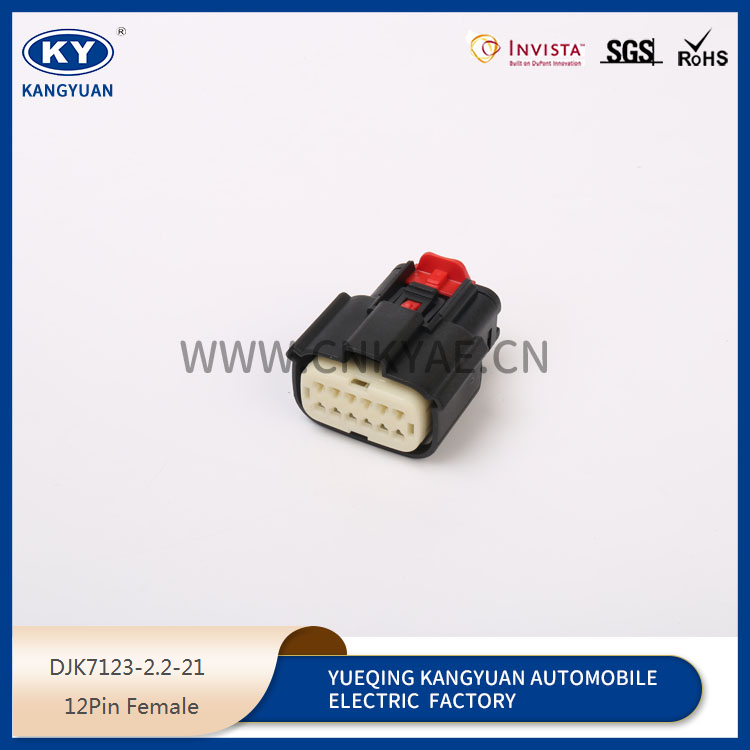

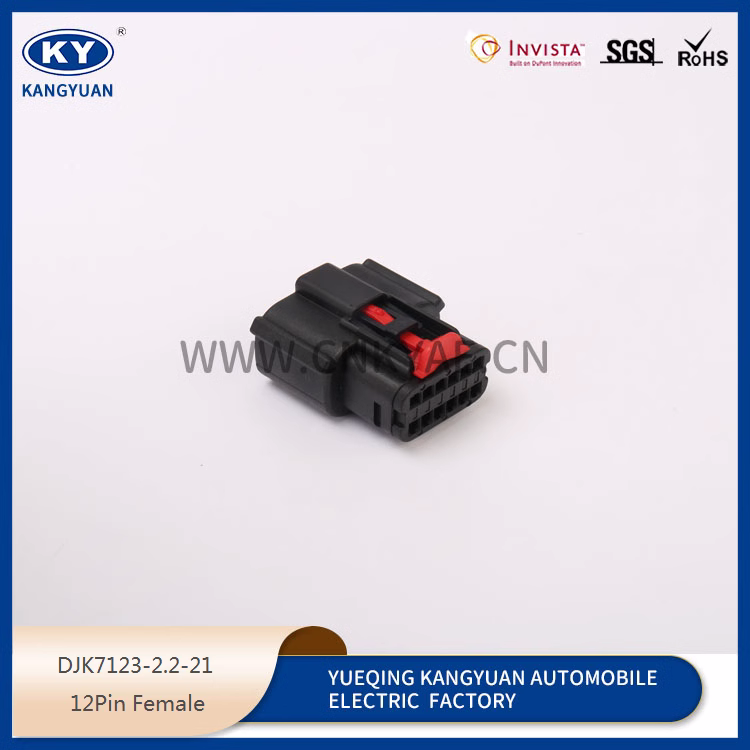

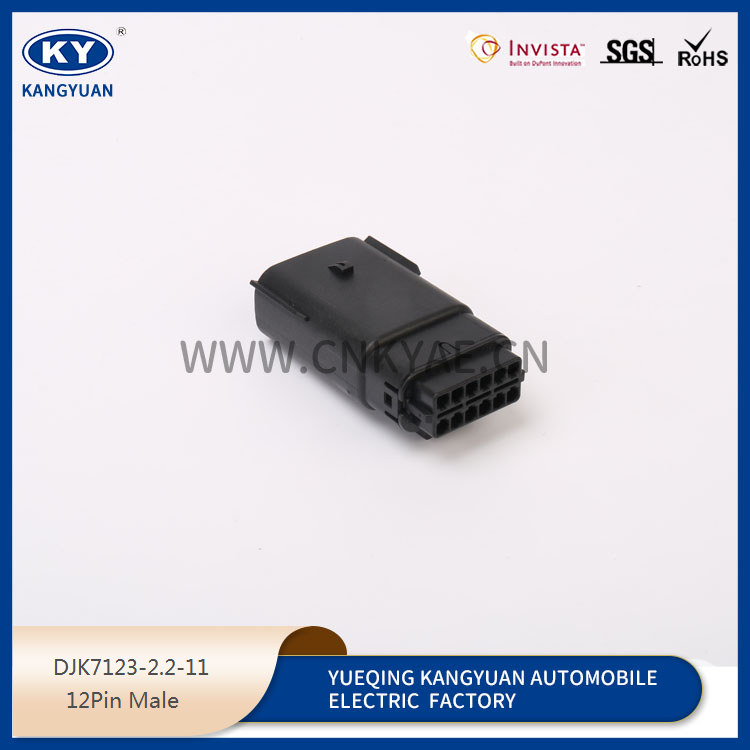

33472-1201/33482-1201 Molex Series MX150 12Pin Female Male automotive waterproof connector with wire harness

Short Description:


Product Detail

Product Tags

Product name Auto Connector
KY number DJK7123-2.2-21-11
Original number(OEM number) 33472-1201/33482-1201
Brand KY
Material Housing:PBT+G,PA66+GF; Terminal:Copper Alloy,Brass,Phosphor Bronze.
Male or Female Female
Number of Positions 12 Pin
Sealed or Unsealed Sealed
Color Black
Operating Temperature range -40℃~125℃
Insulation Resistance 200Mohm
Withstand Voltage 1500V
Connector type Auto connector
Fire resistance UL94V-0
Water resistance IP67
Photos PDF
EXW Packaging Bagged、Box
Application and  usage Wire to wire
Function Automotive Electrical Wiring Harness
Certification T S16949、CE、IP67、Reach and ROHS
MOQ Small order can be accepted. Favorable price for Larger quantity
Payment term 50% deposit in advance,50% before shipment,100% TT in advance
Delivery Time Enough stock and strong production capacity ensure timely delivery.
Packaging 100,200,500PCS per bag with label,export standard carton.
